BC 2222 336 10334 MKP 3336 X1 Film Capacitor 0.33uF 275V 4 Pieces OL0701

WE ARE RICH ELECTRONICS

WE PURCHASE AND RECYCLE

SURPLUS ELECTRONIC

COMPONENTS AND EQUIPMENT!

For sale here we have the above…

4 Pieces

BC Capacitors (formerly Philips)

Interference Suppressor Film Capacitor

APPLICATIONS
X1 class
For X1 electromagnetic interference suppression in across
the line applications (50 Hz / 60 Hz) with a maximum mains
voltage of 275 VAC.

Capacitance:  0.33uF
Capacitance tolerance: ± 20 %
Rated AC voltage: 275 VAC; 50 Hz to 60 Hz
Permissible DC voltage: 630 VDC
Climatic testing class (according to EN 60068-1): 55/105/56/B
Maximum application temperature: 105 °C
Rated temperature: 105 °C
Leads: Tinned wire
Reference standards: IEC 60384-14:2013
IEC 60384-14:2013 / AMD1:2016
EN 60384-14:2013 + AMD1:2016
IEC 60065, pass. flamm. class B
UL 60384-14
CSA E384-14
Dielectric: Polypropylene film
Electrodes: Metallized film
Construction: Mono construction
Encapsulation: Plastic case, epoxy resin sealed, flame retardant UL-class 94 V-0

Dimensions: L 31mm x W. 23mm x D. 13mm – lead length 3.5mm

For datasheet go to…

https://www.mouser.co.uk/datasheet/2/427/mkp3361-1762168.pdf

PLEASE NOTE!

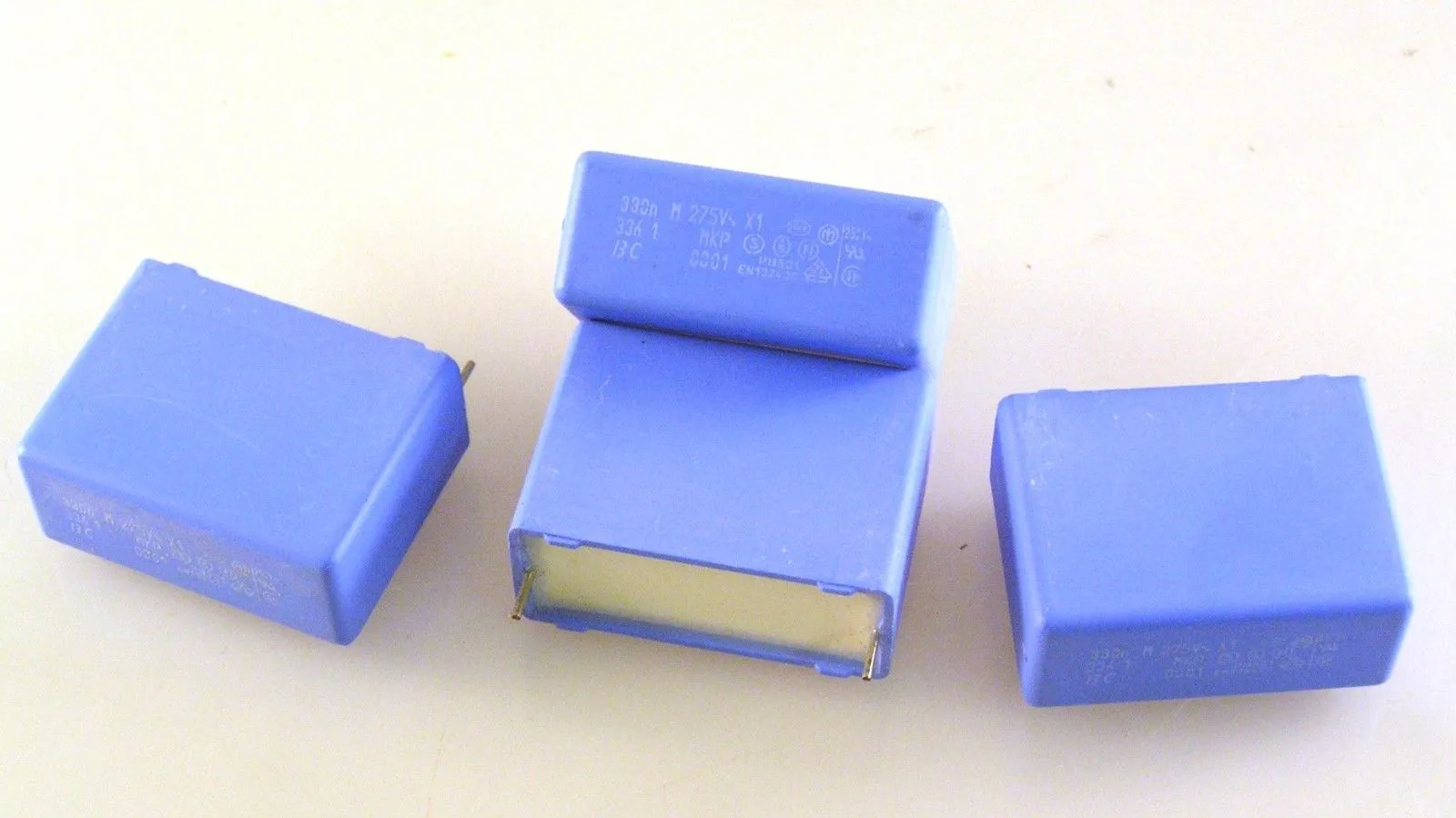

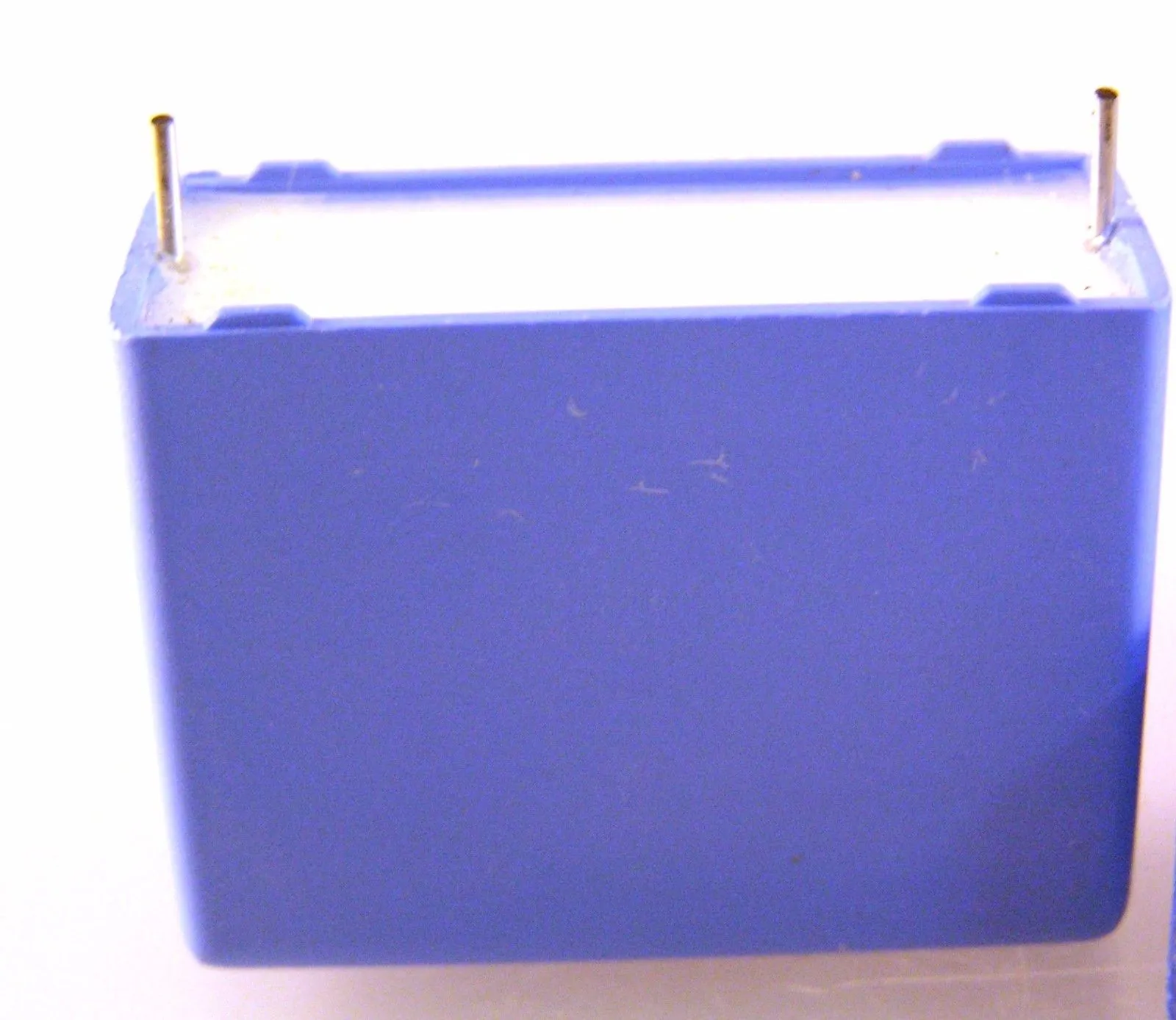

These parts came to us as part of a lot of surplus stock from a large distribution Co. and have been kept in storage for a time, they are however pristine, stored with us still in their original packaging and ‘as new’ in all respects, the photographs are representative of their excellent condition, and, as with all our products they come with a full guarantee.
