Cinch 81/731/16/EG Edge Connector 16 Way Solder Tag 0.156in. Pitch OM0967L

CINCH 81/731/16/EG/EG 16 Way Gold Plated Edge Connector

• 0.156″ (3.96mm) Pitch
• Body Orientation Straight
• No. of Contacts 16
• No. of Rows   2
• Pitch 3.96mm
• Termination Method  Solder
• Contact Plating Gold Over Nickel
• Contact Material  Brass
• Current Rating  5A
• Housing Material Glass Fibre Reinforced PET
• Minimum Operating Temperature     -65C
• Maximum Operating Temperature    +105C
• 2 rows of 16 x solder type gold plated tags at rear
• Each of the 16 PCB card edge connection slots has a top and bottom sprung contact to suit a double sided gold plated edge connector on a PCB
• 16 top and 16 bottom entry points connected to 32 pins at the rear
•  Mounting lug at each end
• Overall length inc. mounting lugs 84mm Length of slot into which PCB would fit 64mm.

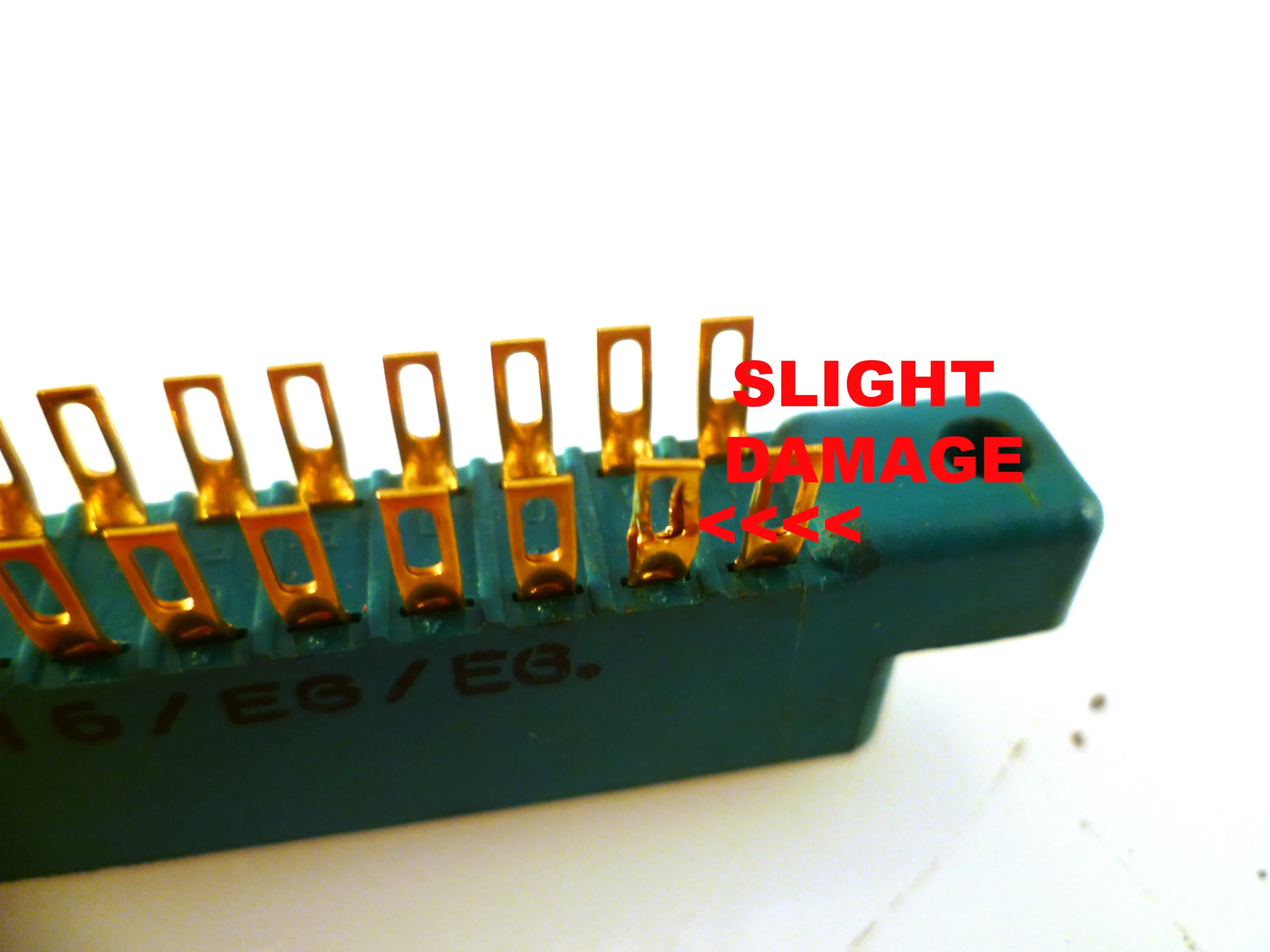

• PLEASE NOTE! These connectors came to us as part of a surplus lot of components from a large ‘milspec’ type OEM. They have been in storage for many years. This is the last one we have and one of the solder tags has been slightly damaged it is still perfectly functional but has has been knocked and scratched slightly, we have therefore classified it as ‘new other’ – see photograph’s above. We have reduced the price of this last one accordingly.
