IMO 20.800M 24Amp 10mm Pitch Terminal Block 2 or 4 Way 5 Pieces EB5M2-1

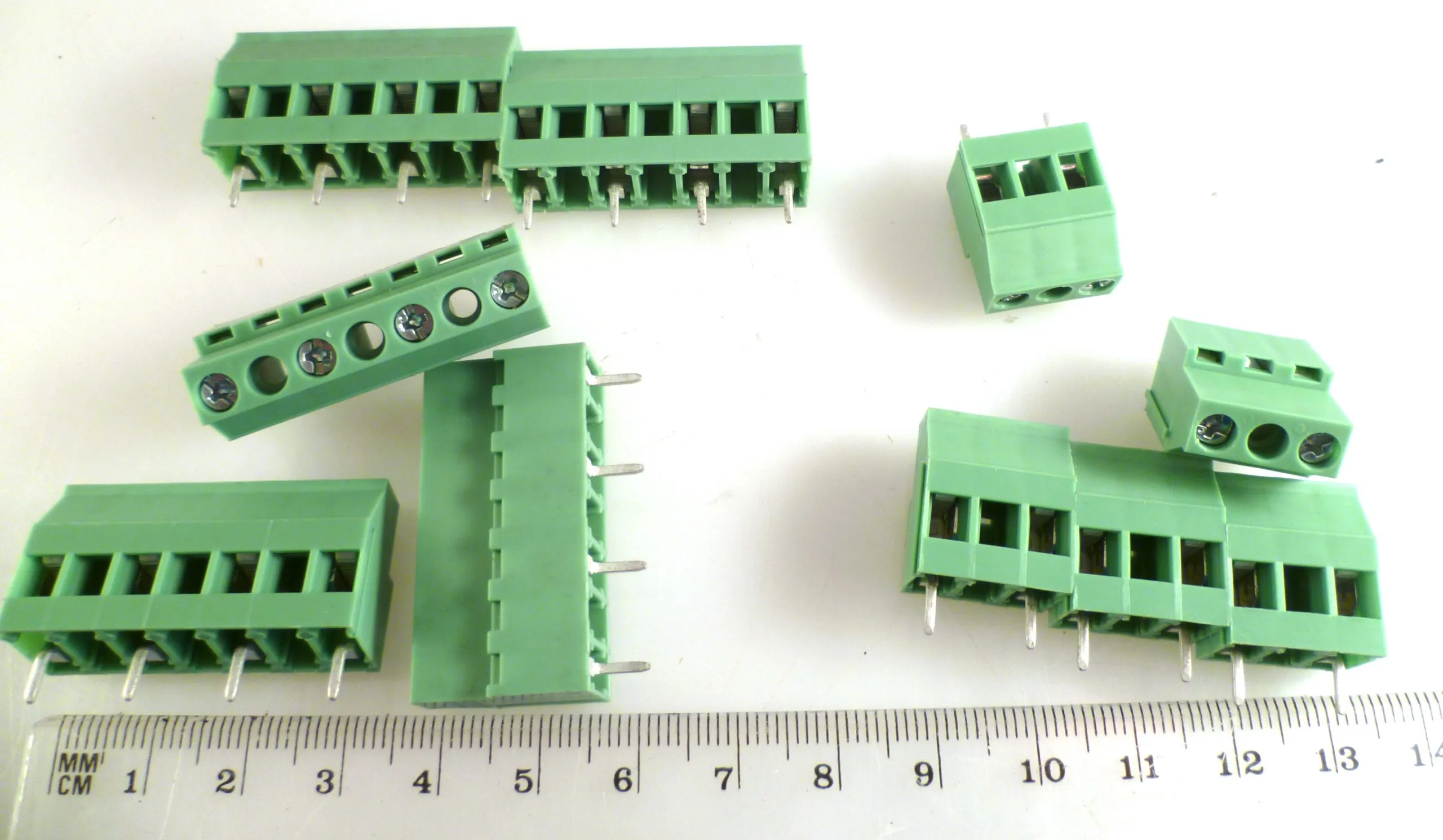

Please note: The photographs are representative of the 20.800M range, displaying 2 and 4 way sockets, the design of all the sockets is identical, apart from no. of terminals.

Please select no. of ways required from drop down box

Modular in construction these feature a mortice and tenon slide-lock design, the 2 and 4 way can be clipped together, so you could mix ‘n match them in any configuration

Rising clamp block in the conventional vertical mounting style. These blocks are particularly suited in situations where the wire

termination needs to be more secure and have greater resistance to vibration. It also improves the protection of stranded wires and ensures all of the strands are clamped securely. The blocks are suitable for industrial controls and information technology applications.
IMO PRECISION CONTROLS

• Rated voltage: UL–300V; IEC–250V
• Rated current: UL–24A; IEC–24A
• Wire range: 4.0mm²
• Solid wire size: 24–12AWG
• Stranded wire range: 24–12AWG
• Rated surge voltage: 1.6/ 2/ 4kV
• Torque: 0.5Nm
• Screw: M2.5
• Wire strip length: 6–7mm
