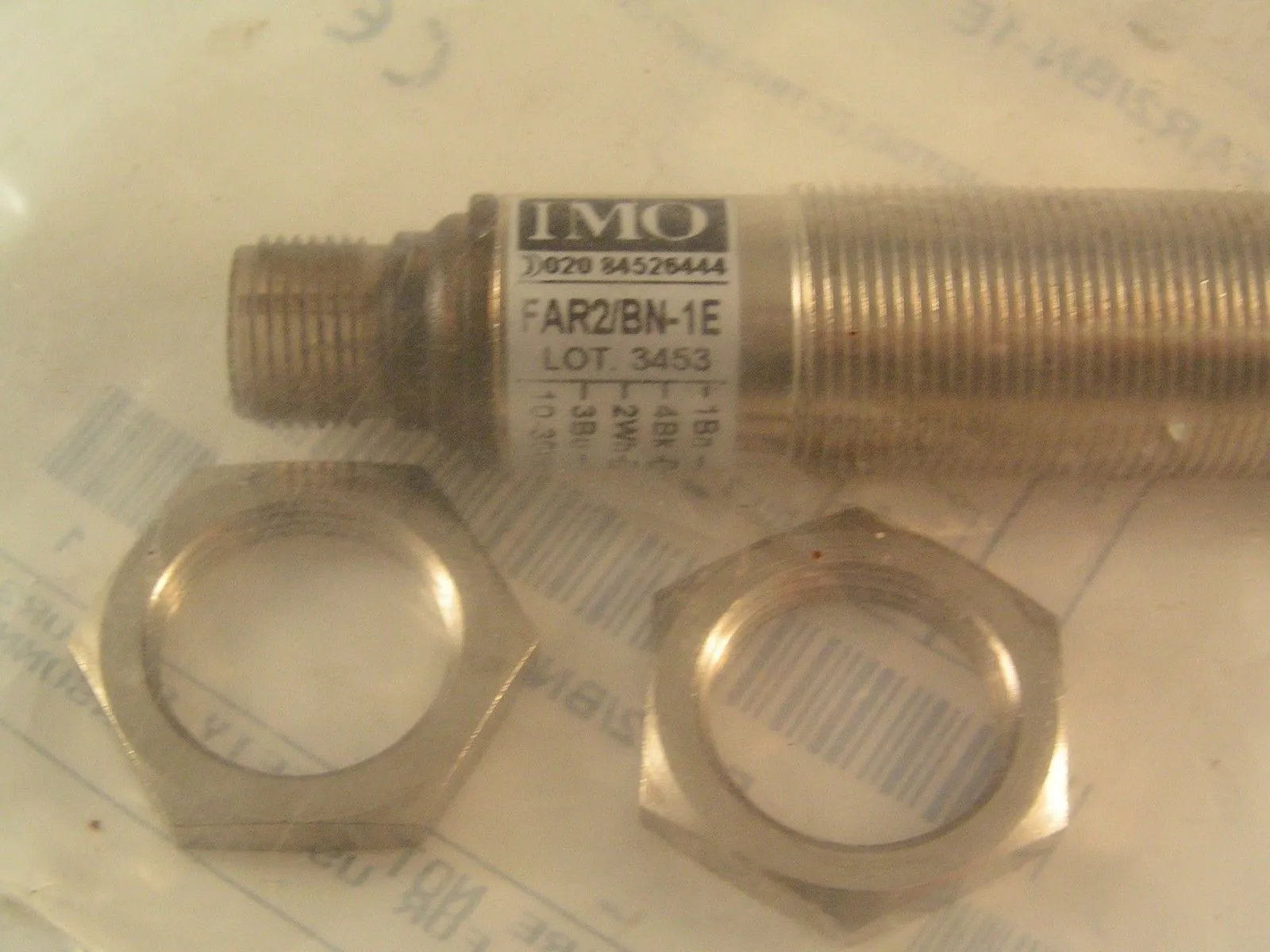

IMO FAR2/BN-1E Photoelectric Switch Diffuse Reflection Sensor 10-30VDC MBH013j

IMO FAR2/BN-1E Photoelectric SwitchDiffuse reflection sensor, M18x1, Sensing range: 0 – 100 mm, Digital (NPN-transistor), NO / NC, Light-on / dark-on, Connection type: M12 connector 4-pin, Housing material: Brass nickel-plated, IP67 Ingress protection, Power supply V DC: 10 – 30
General data: SeriesFATypeDiffuse reflection sensorSensorfunctionSwitchConstruction typeM18x1Optical axisAxialConnection typeM12 connector 4-pinLight sourceRed light, visibleMeasurement data: Sensing range0 – 100 mmRepeat accuracy5 %Response time200 msTemperature drift10 %Outputs: Output circuitDigital (NPN-transistor)Output functionNO / NCLight-on / dark-onLight-on / dark-onSwitching hysteresis≤ 10 %Switching frequency250 HzSensitivity adjustmentNoPower supply: Power supply V DC10 – 30 V DCLoad current max.100 mANo-load current30 mAShort circuit protectionYesReverse polarity protectionJaRipple≤ 10 %Voltage drop2 V at 100 mALeakage current10 µAPhysical characteristics: Housing materialBrass nickel-platedOptic materialPolycarbonate (PC)Ingress protectionIP67Dimensions (ø x L)18 x 81.7 mmWeight100 gTightening torque40 NmEnvironmental: Operating temperature range-25 – +70 °CExternal lightmax. 10000 luxApprovals: CEEN 60947-5-2EMCEN 50082-2cULusYes

Still sealed in manufacturer’s bag.

For datasheet click here and here
