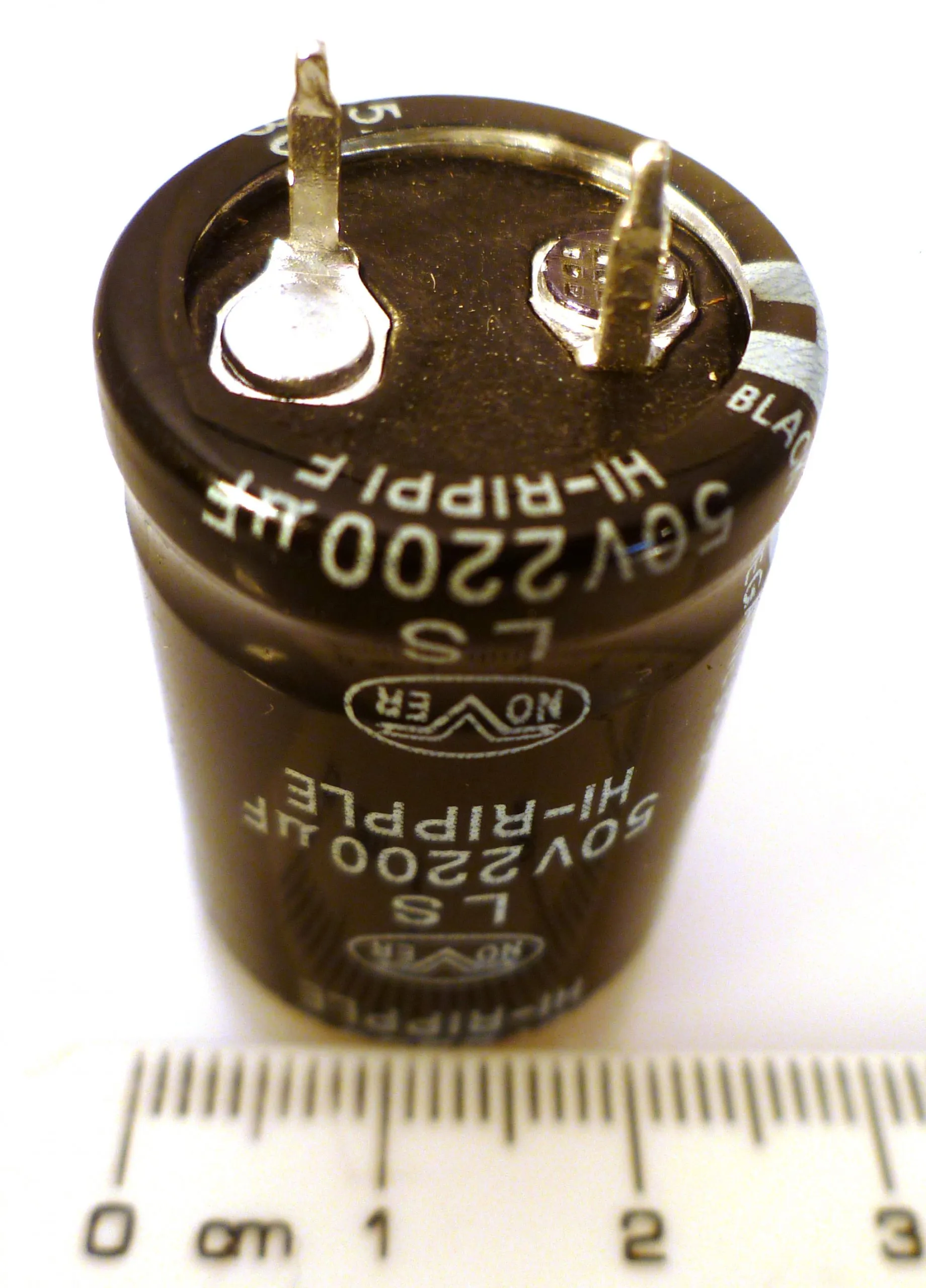

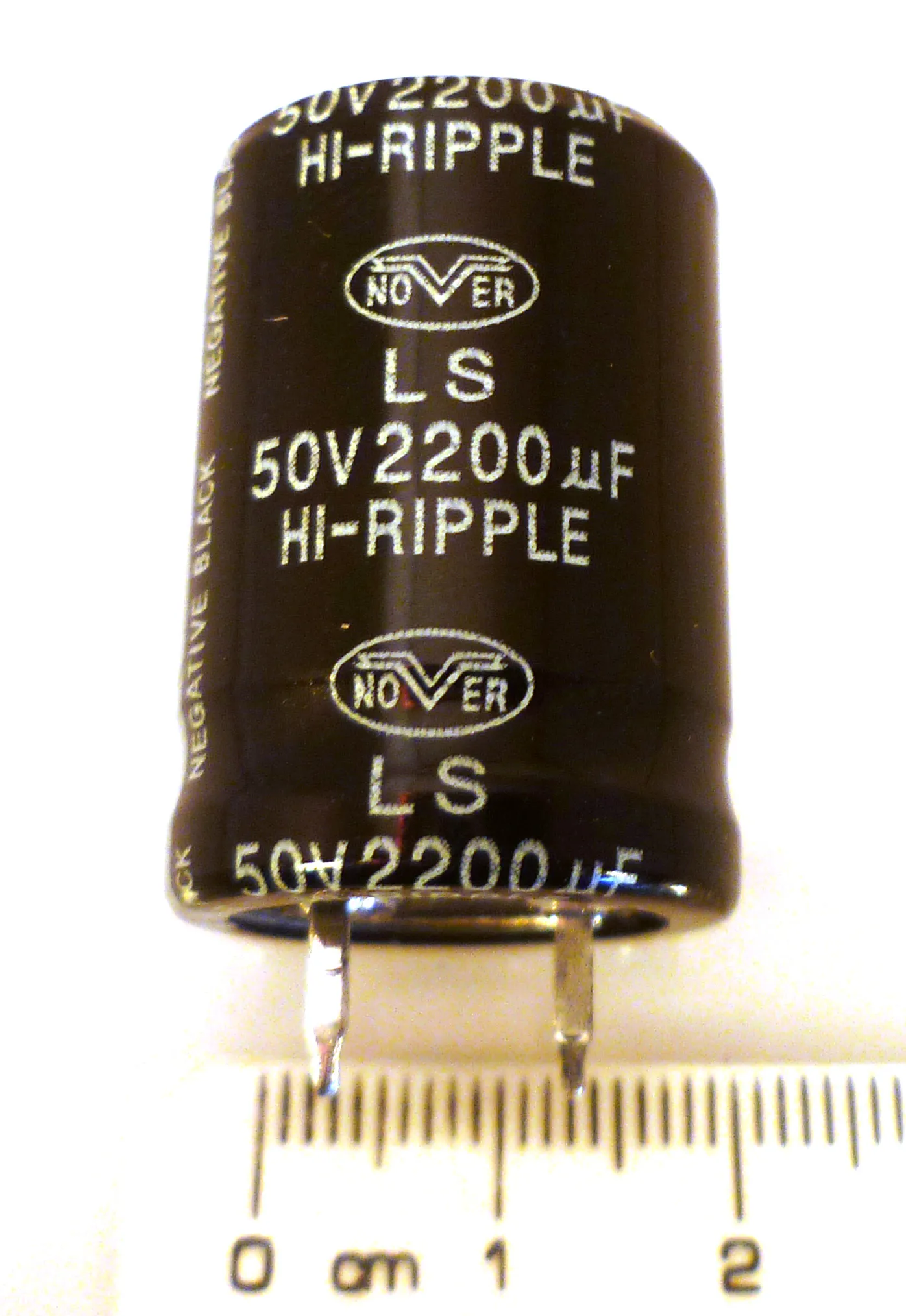

Nover RLS9GB407 Radial Electrolytic Capacitor Hi Ripple 50v 2200uf OL0072E

Nover RLS9GB407 Radial Electrolytic Capacitor Hi Ripple 50v 2200uf OL0072E - Image 2

Nover RLS9GB407 Radial Electrolytic Capacitor Hi Ripple 50v 2200uf OL0072E - Image 3

Nover RLS9GB407 Radial Electrolytic Capacitor Hi Ripple 50v 2200uf OL0072E - Image 4

Nover RLS9GB407 Radial Electrolytic Capacitor Hi Ripple 50v 2200uf OL0072E - Image 5

Nover RLS9GB407 Radial Electrolytic Capacitor Hi Ripple 50v 2200uf OL0072E - Image 6

Nover RLS9GB407 Radial Electrolytic Capacitor Hi Ripple 50v 2200uf OL0072E

Original price was: £10.00.Current price is: £6.00.

Category: 50V

Description
Reviews (0)

WE ARE RICH ELECTRONICS

WE PURCHASE AND RECYCLE

SURPLUS ELECTRONIC

COMPONENTS AND EQUIPMENT!

For sale here we have the above…

1 Piece

The Nover LS series is a range of snap-in electrolytic capacitors that are used for general purpose applications. They are made of aluminum and are designed to have a high ripple current, high capacitance and high CV. Housed in compact bodies and fitted with snap-in pcb terminals on a standard 10mm pitch. Endurance test 2000 hours at 85°C.

Features

Conforms to JIS C5141-1982 Char.W

Endurance test ……………………………………. 2000 hours at 85°C

Capacitance tolerance …………………………. ±20% at 120Hz, 20°C

Ripple current (as listed) ……………………… measured at 120Hz, 85°C (see also multiplier table below)

Multiplier for ripple current

Frequency coefficient

Freq (Hz) Rated Voltage(V) 16 ~ 50 0.95 @ 50Hz 1.0 @ 120Hz 1.15 @ 10K Hz 1.15 @20K Hz

Operating temperature range ………………..-40°C to +85°C (16 ~ 100V)-25°C to +85°C (200 ~ 450V)

Leakage current …………………………………. ≤0.01CV or 3 A (whichever is greater) after 2 min.

Applications

The Nover LS series is suitable for applications that require a high capacitance and high ripple current, such as power supplies.

Other considerations

The Nover brand of electrolytic capacitors is known for its good quality. They are a reliable alternative to other brands such as Panasonic or Elna.

Storage

Electrolytic capacitors should be handled with care if they are stored in a high ambient temperature environment for a long time.

10mm joggled pins designed to ‘Snap in’ to pre drilled holes on a PCB.

Dimensions: D. 22mm L. 30mm Pin Pitch 10mm

High CV

High ripple current

Compact body

Snap-in terminals

Endurance test 2000 hours at 85°C

Maximum temperature 85°C

Capacitance tolerance 20%

Leakage current ≤0.01

Body colour Black

For datasheet search…Nover LS series

Or go directly to…

www.anglia.com/product_guide/caps/80_85.pdf

PLEASE NOTE!

These parts came to us as part of a lot of surplus stock from a large Milspec type Co. and have been kept in storage for some time, we have therefore classified them as ‘new other’. They are however pristine, stored with us still in their original packaging, the photographs are representative of their excellent condition, being of some of our actual stock, and, as with all our products they come with a full guarantee.

If you have similar items to this, or indeed any electronic components that are surplus to requirements please contact us with details.
