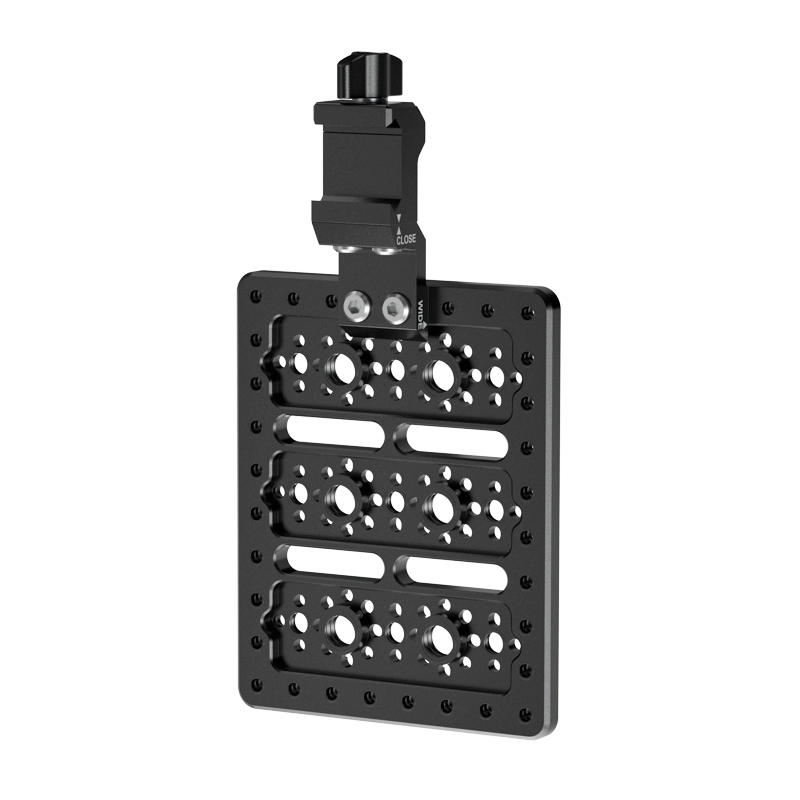

Wide NATO Cheeseplate

Introducing the Wide NATO Cheeseplate, a compact yet robust addition to your filmmaking toolkit. This cheeseplate offers a streamlined solution for mounting accessories without compromising on functionality.

Versatile Flat Threaded Plate

The Wide NATO Cheeseplate boasts a sleek and minimalist design, ensuring compatibility with a wide array of accessories while maintaining a low-profile presence on your rig.

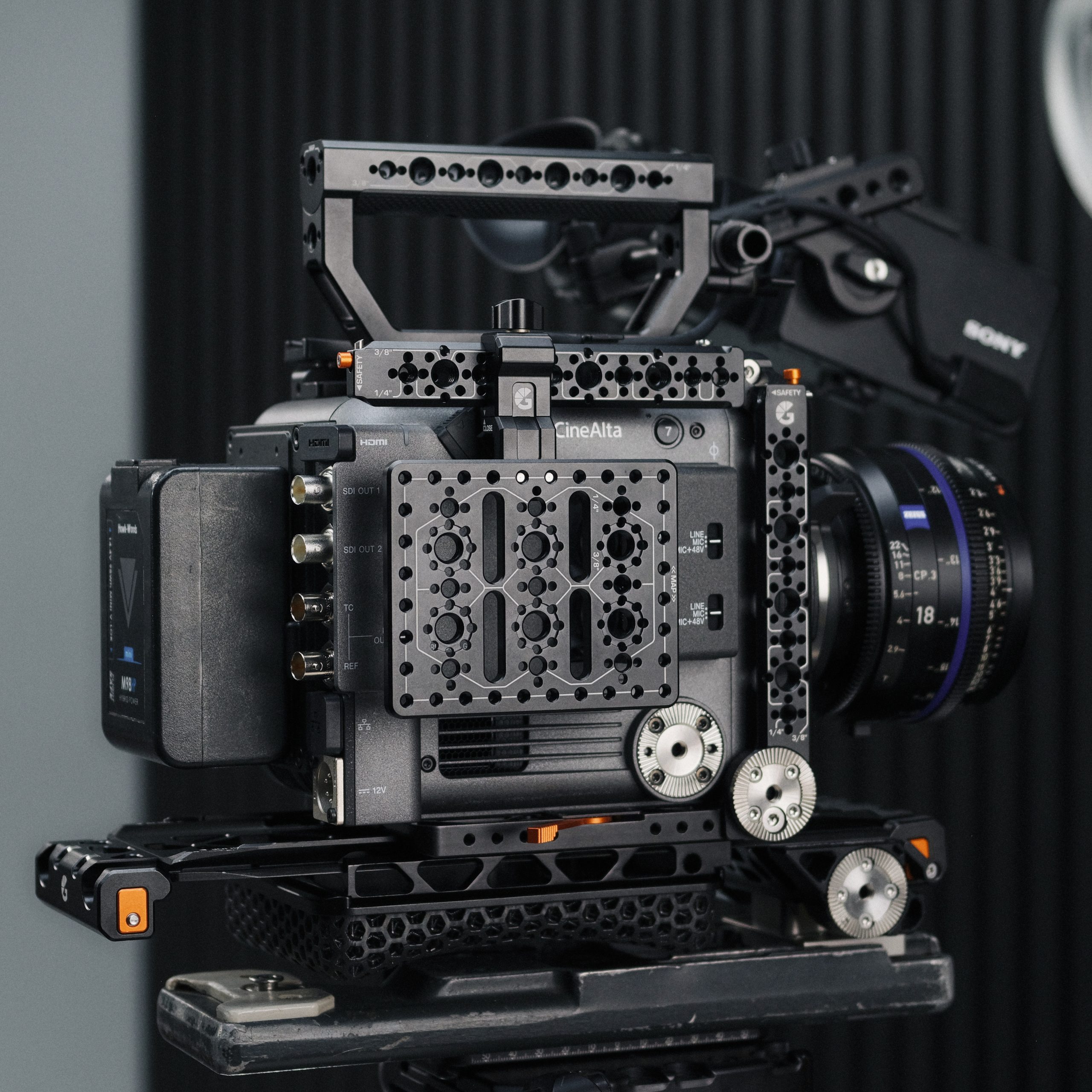

Whether you’re mounting wireless transmitters, monitors, or other essential gear, this cheeseplate provides a flat and stable surface for secure attachment, eliminating the hassle of cluttered setups and ensuring a seamless shooting experience.

The cheeseplate also includes channel slots for attaching bongo ties or other velcro wraps.

Narrow or Wide

The Wide Cheeseplate measures 80x100mm. For a narrower mounting surface, opt for the Narrow NATO Cheeseplate, providing an slimmer 50x100mm area for mounting. Both plates are 6mm thick.

Easy Configuration, Maximum Flexibility

The cheeseplate can be mounted and repositioned from any point along the border, enabling you to switch between portrait, landscape, or offset orientations, catering to the unique demands of every shooting scenario.

Extra Clearance

The mounting bracket includes a rotatable connector piece that provides an additional 10mm of clearance in the wide position as needed. This provides more room for monitor and audio ports, along with cables and connectors.

Universal Compatibility

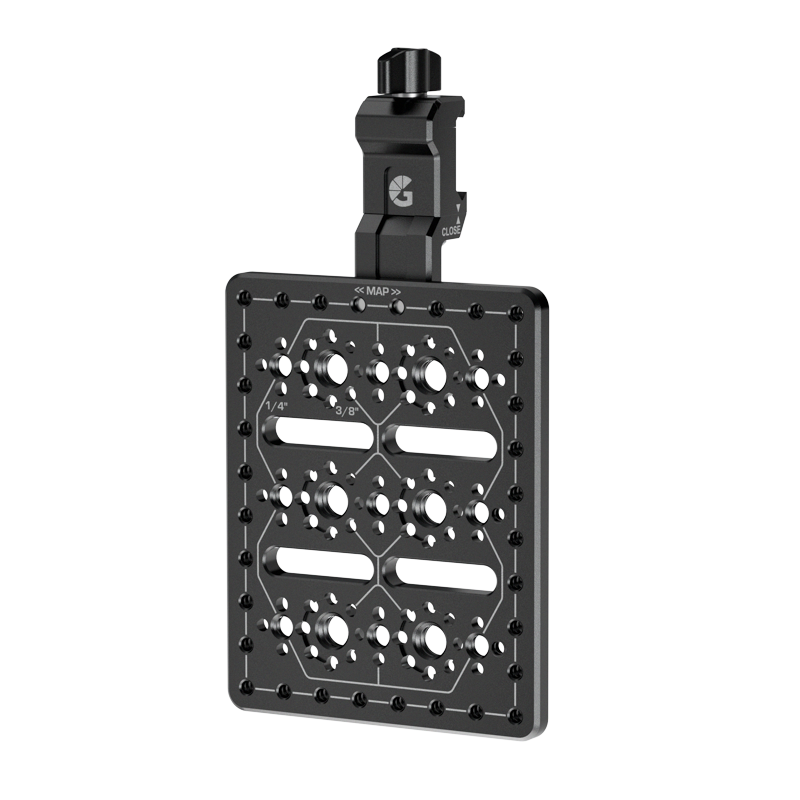

Compatible with any standard NATO rail, and built to ARRI Pin-Lock standards with 3/8″ & 1/4″ threads, the cheeseplate ensures universal compatibility with a vast selection of accessories.

The outer edge is also bordered with ARRI MAP M4 points for further rigging & functionality.

Winged Lever for Easy Operation

The winged lever design guarantees effortless and comfortable operation, even when wearing gloves. This feature enables you to swiftly make adjustments and repositions with ease.

Instructions

To mount the cheeseplate, loosen the NATO clamp and slide it onto your NATO rail. Adjust it to the desired position, then secure it by tightening the clamp using the winged lever.

Switching between Close or Wide Configurations

With a 3mm Hex key, loosen the two captive mounting screws securing the cheeseplate to the connector. Next, using the same 3mm Hex key, loosen the two captive screws attaching the connector to the clamp. Adjust the connector to either the Close or Wide setting, ensuring the arrows are aligned before securing the mounting screws.

Positioning the Cheeseplate

To adjust the cheeseplate, use a 3mm Hex key to loosen the two captive mounting screws that secure the cheeseplate to the connector. Align the cheeseplate to your preferred position before tightening the mounting screws.

Compatibility

The Wide NATO Cheeseplate is compatible with a wide range of camera models and equipment featuring NATO standard rails, ensuring seamless integration into your existing rigging setup.

What’s Included:

The Wide NATO Cheeseplate includes the NATO Clamp, Close/Wide Connector and the Wide cheeseplate.

Warranty

24 Months
