XP Power Supply ECM140US24-A 24V 5A Class I and II Medical Grade MBF017H

XP Power Supply ECM140US24-A 24V 5A Class I and II Medical Grade MBF017H - Image 2

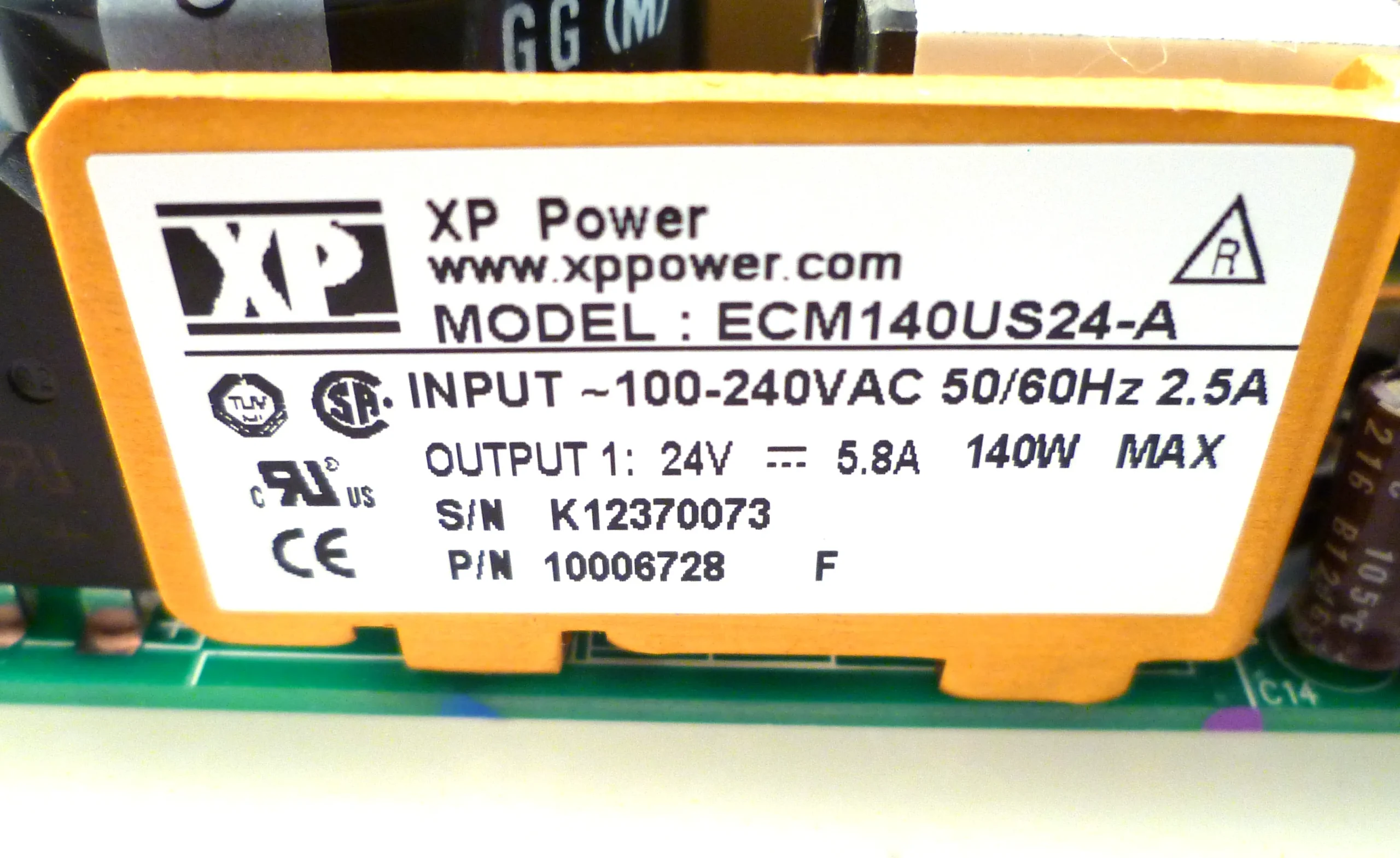

XP Power Supply ECM140US24-A 24V 5A Class I and II Medical Grade MBF017H - Image 3

XP Power Supply ECM140US24-A 24V 5A Class I and II Medical Grade MBF017H - Image 4

XP Power Supply ECM140US24-A 24V 5A Class I and II Medical Grade MBF017H

Original price was: £100.00.Current price is: £60.00.

Categories: 24V, Power Adapters / Supplies PSU

Description
Reviews (0)

WE ARE RICH ELECTRONICS

WE PURCHASE AND RECYCLE

SURPLUS ELECTRONIC

COMPONENTS AND EQUIPMENT!

For sale here we have the above…

1 Piece

AC/DC Open Frame Power Supply (PSU)

ITE & Medical 1 Output

120 W 148W @ 10CFM

Power Rating (Convection Cooling): 120W

Power Rating (Forced Cooling): 148W @ 10CFM

Input Voltage VAC: 80V AC to 264V AC

Power Supply Output Type: Adjustable, Fixed

Output Voltage – Output 1: 24V

Output Current – Output 1: 5A

Approved for Class I and Class II applications, the ECM140 range of single output AC/DC, 148 Watt power supplies feature high power density in an industry standard 3 x 5″ (76.2mm x 127mm) footprint.

The 1.3″ (33mm) high, 1U compatible high-density power supplies meet EN55022 Level B conducted emissions with leakage currents of 100µA at 115VAC or 215µA at 230VAC.

Making these switchers ideal for industrial, IT and medical applications.

The ECM140 series has single output versions from 12V to 48VDC, adjustable by ±5%.

All models include an additional +12V / 0.5A fan output. They are dual-fused for compliance with IEC60601-1 and efficiency is 88% typical, so minimal excess heat is generated.

The ECM140 require only 10 CFM of cooling to deliver a full 148 Watt of power up to 60°C and operates at up to 70°C with derating.

The units also supply 120 Watt when convection-cooled up to 50°C with operation to 70°C with derating.

Comprehensive overvoltage, overload and short circuit protection.

High Efficiency Resonant Topology
120W Convection Cooled
140W Force Cooled (10CFM)
Class I & Class II Installations
Industry Standard 3″ x 5″ x 1.3″ Format
12V Fan Output as Standard
Remote Sense as Standard
IT, Industrial & Medical Safety Approvals
Remote On/Off & Power Good Signals Option

Manufacturer:	XP Power
Product Category:	Switching Power Supplies
Standard Delivery :	Royal Mail 2nd class signed for
RoHS:	Details
Product:	Switching Supplies
Output Voltage-Channel 1:	24 VDC
Output Voltage-Channel 2:	12 VDC
Number of Outputs:	3 Output
Output Power:	120 W
Open Frame/Enclosed:	Open Frame
Input Voltage:	80 VAC to 264 VAC
Output Current-Channel 1:	5 A
Output Current-Channel 2:	500 mA
Industry:	Medical, Industrial
Mounting Style:	Panel
Length:	127 mm
Width:	76.2 mm
Height:	33 mm
Series:	ECM140
Approvals:	ANSI/AAMI, CSA/cUL, EN60601-1, EN60950-1, UL60950-1
Brand:	XP Power
Compliance:	ANSI/AAMI, CSA/cUL, EN60601-1, EN60950-1, UL60950-1
Efficiency:	88 %
Input Frequency:	47 Hz to 400 Hz
Isolation Voltage:	4 kVAC
Load Regulation:	Regulated
Maximum Operating Temperature:	+ 85 C
Minimum Operating Temperature:	– 40 C
Operating Temperature Range:	– 40 C to + 85 C
Output Current-Channel 3:	500 mA
Output Voltage-Channel 3:	5 VDC
Packaging:	Bulk
Product Type:	Switching Power Supplies
	1
Subcategory:	AC-DC Power Supply
Type:	AC-DC Converter
Unit Weight:	320 g

For datasheet search…ECM140US24-A

Or go directly to…

https://www.xppower.com/portals/0/pdfs/SF_ECM140.pdf

PLEASE NOTE!

These parts came to us as part of a lot of surplus stock from a large distribution Co. and have been kept in storage for a time, we have therefore classified them as ‘new other’, they are however pristine, stored with us still in their original packaging, the photographs are representative of their excellent condition being of some of our actual stock, and, as with all our products they come with a full guarantee.
